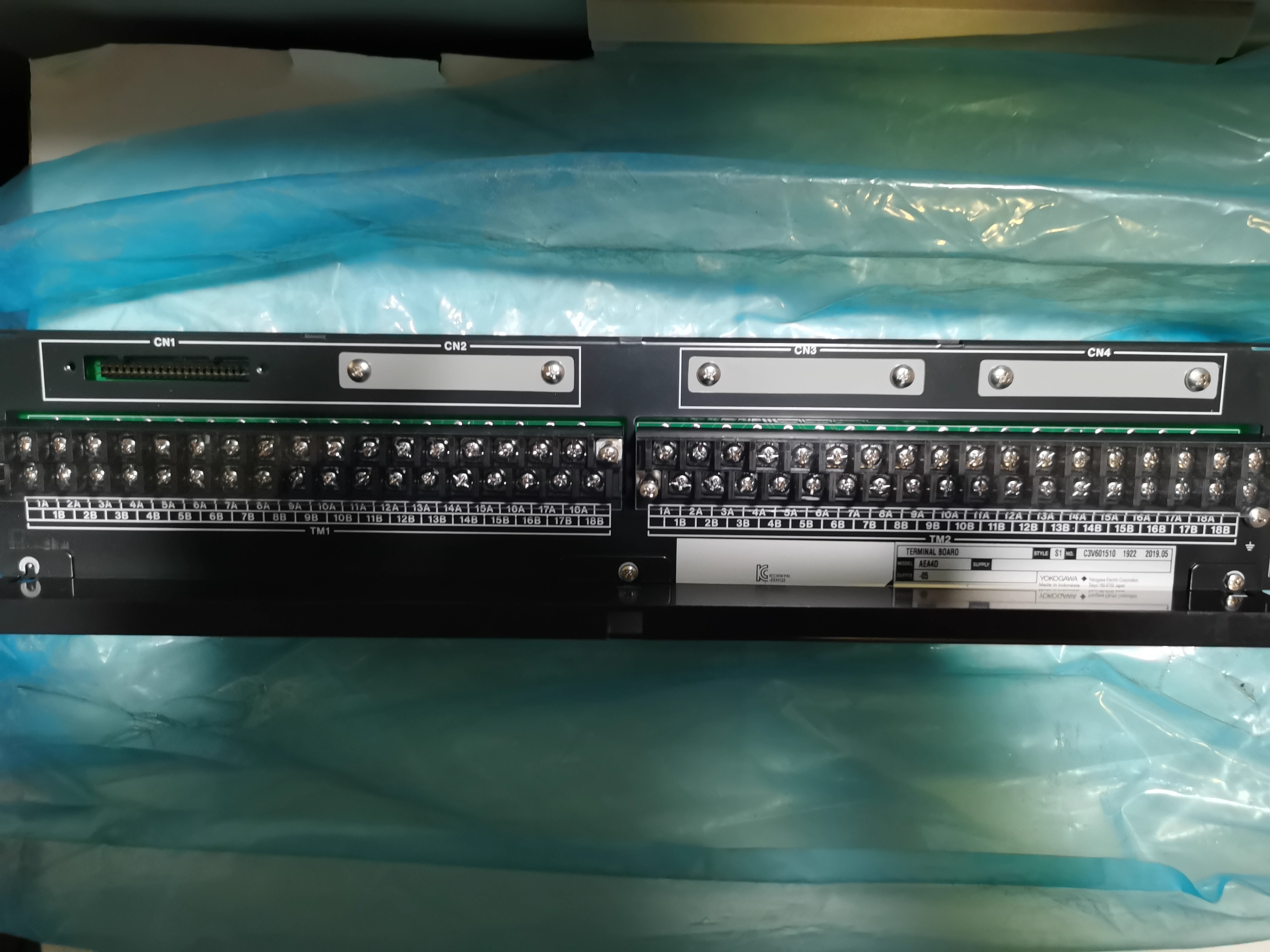

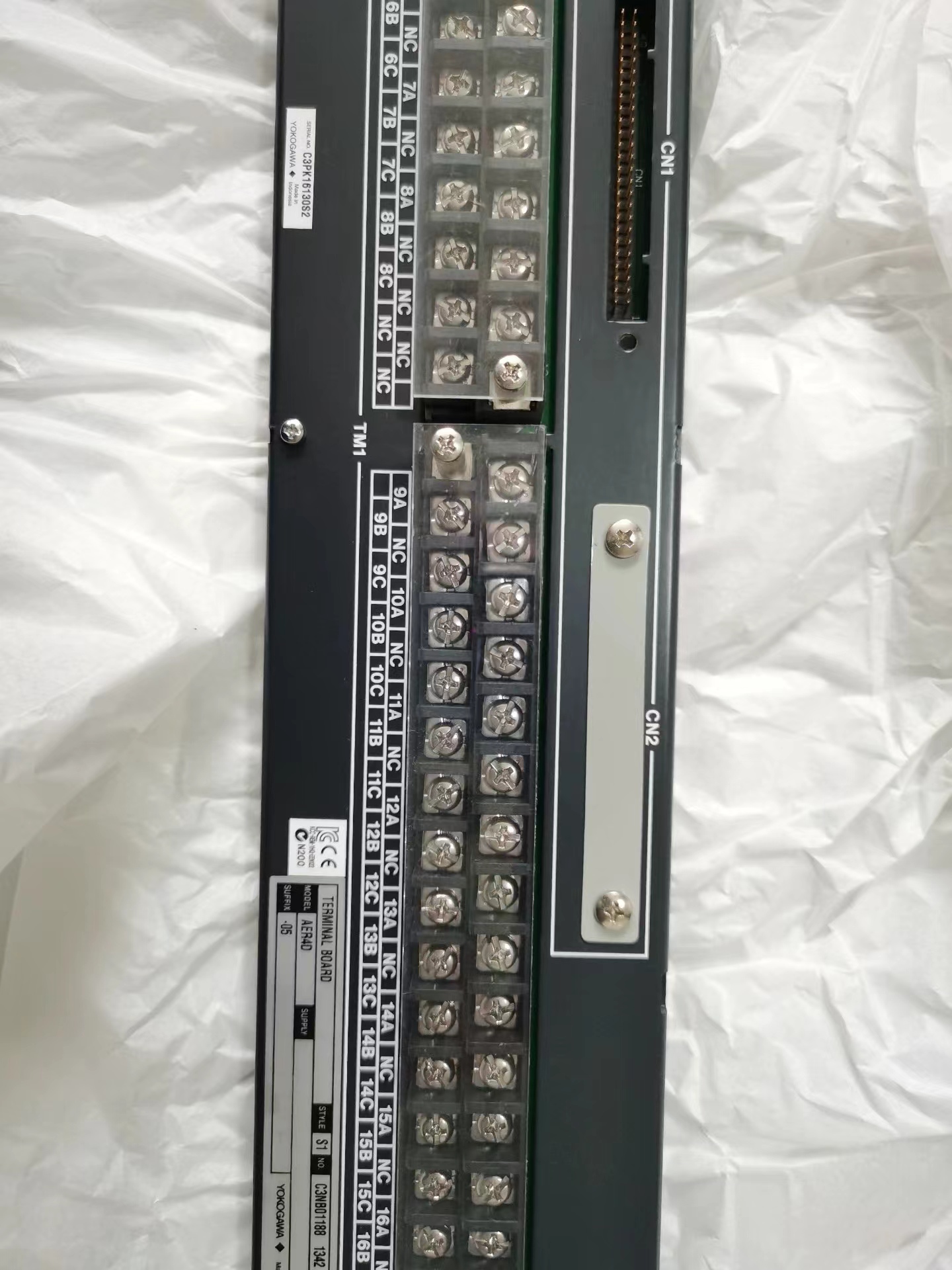

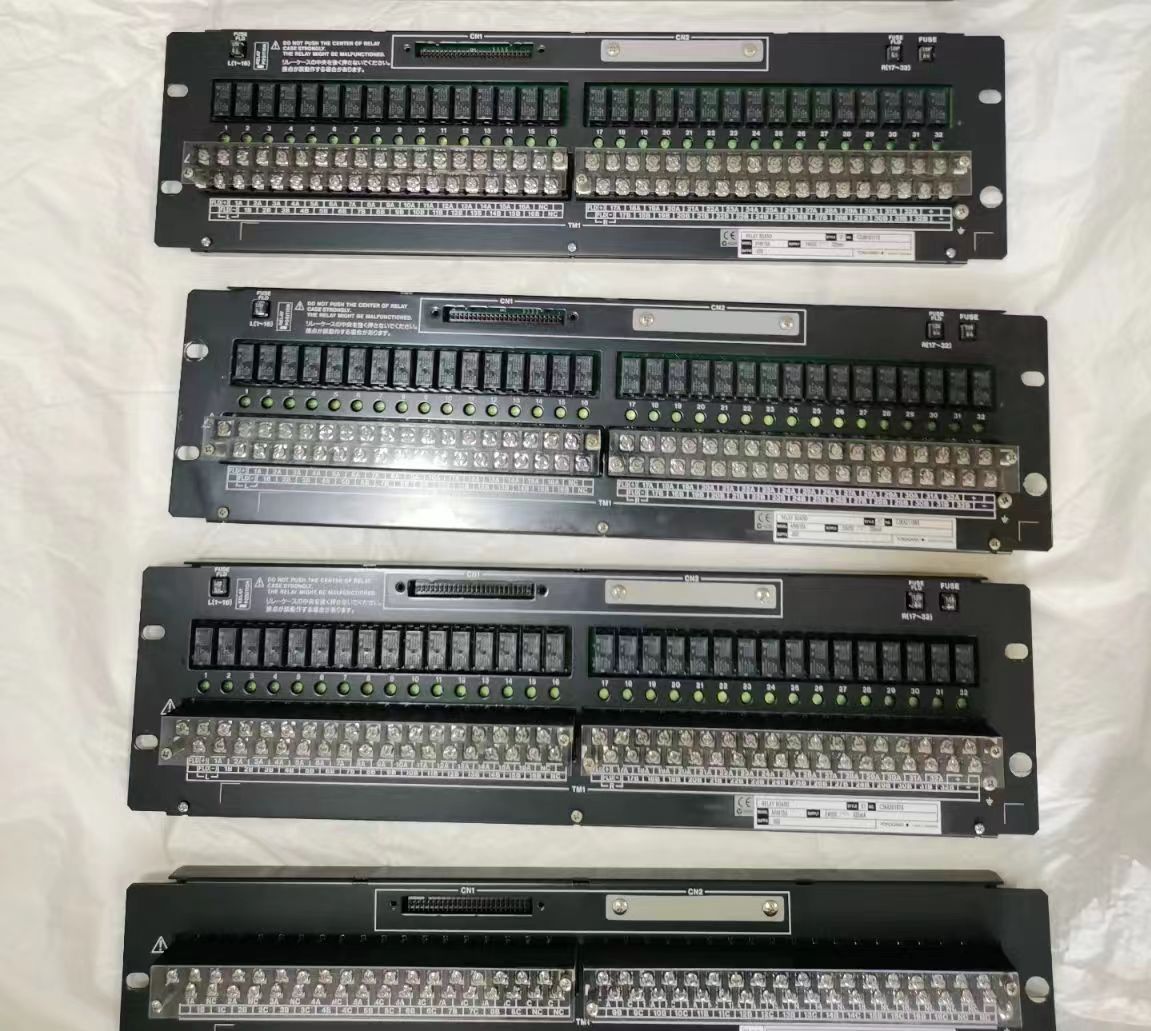

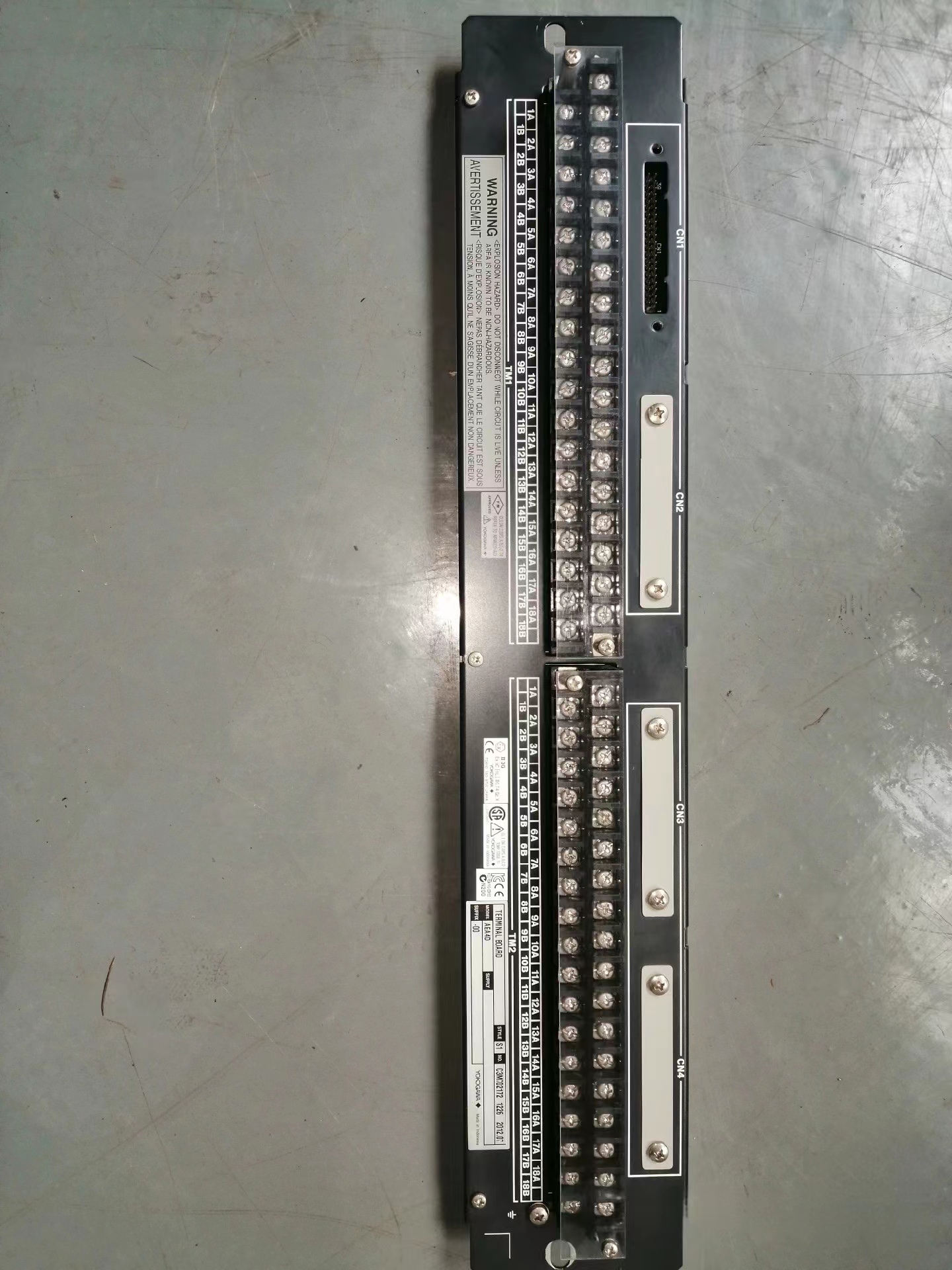

Name: Yokogawa Relay Boards ARM55W-000
Brand: Guangzhou Taike Electron Technology Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Yokogawa Relay Boards ARM55W-000

GENERAL

This document describes the specifications of relay board used in FIO subsystem of CENTUM VP. Relay input/
output boards are connected in between digital input/output modules (for FIO) and field devices. Relay input boards
receive contact signals or voltage input signals of field devices. Relay output boards receive output signals of the
digital output module and amplify by the relay, and then output to field devices. These relay boards support dualredundant digital input/output modules (for FIO).

STANDARD SPECIFICATIONS

Relay Boards

Models	Descriptions	Contact Points	Terminals	Signal Cables	Connectable Digital I/O Modules
					Modules	Terminal Blocks
ARM15A	Mechanical Relay Board	32-point	M4 screws	AKB331 (for 32-point)	ADV151	ATD5A
				AKB337 (for 64-point)	ADV161	-
ARM55D		32-point	M4 screws	AKB331 (for 32-point)	ADV551	ATD5A
				AKB337 (for 64-point)	ADV561	-
ARM55W		32-point	M4 screws	AKB331 (for 32-point)	ADV551	ATD5A
				AKB337 (for 64-point)	ADV561	-
ARM55T		32-point	M4 screws	AKB331 (for 32-point)	ADV551	ATD5A
				AKB337 (for 64-point)	ADV561	-
ARM55C		32-point	M3.5 screws (M4 in power input part)	AKB331 (for 32-point)	ADV551	ATD5A
				AKB337 (for 64-point)	ADV561	-
ARS15B-5 (48 V DC) ARS15B-6 (110 V DC)	Solid State Relay Board	32-point	M4 screws	AKB331 (for 32-point)	ADV151	ATD5A
				AKB337 (for 64-point)	ADV161	-
ARS15M-1 (100 V AC) ARS15M-2 (220 V AC) ARS15M-3 (10-30VDC)		32-point	Pressure clamp terminals	AKB331 (for 32-point)	ADV151	ATD5A
				AKB337 (for 64-point)	ADV161	-
ARS55M-1 (100 VAC) ARS55M-2 (220 VAC) ARS55M-3 (5-60VDC)		32-point	Pressure clamp terminals	AKB331 (for 32-point)	ADV551	ATD5A
				AKB337 (for 64-point)	ADV561	-

Mechanical Relay Boards (Contact Output)

Models	ARM55D	ARM55W ARM55T (with switch)	ARM55C
Usage	Mechanical Relay Dry Contact Output (“a” contact (NO)) (Single / Dual-redundant)	Mechanical Relay Wet Contact Output (Single / Dual-redundant) AUTO/OFF/ON switch (only for ARM55T)	Mechanical Relay Dry Contack Output (“a” contact or “b” contact (NO or NC)) (Single / Dual-redun or dant) (*6)
Contact Points	32-point	32-point	32-point
Terminals for Field Device Connection	M4 screws	M4 screws	M3.5 screws (*5) (M4 in power input part)
Modules	ADV551 (DO: 32-point) + ATD5A (Terminal block) ADV561 (DO: 64-point) (*1)	ADV551 (DO: 32-point) + ATD5A (Terminal block) ADV561 (DO: 64-point) (*1)	ADV551 (DO: 32-point) + ATD5A (Terminal block) ADV561 (DO: 64-point) (*1)
Signal Cables	AKB331 (for 32-point) AKB337 (for 64-point)	AKB331 (for 32-point) AKB337 (for 64-point)	AKB331 (for 32-point) AKB337 (for 64-point)
Maximum Load (*2)	250 V AC: 2 A per point 30 V DC: 2 A per point 125 V DC: 0.1 A per point (*3)	250 V AC: 0.6 A per point 30 V DC: 0.6 A per point 125 V DC: 0.1 A per point (*3)	30 V DC: 1.5 A per point
Minimum Load	5 V, 10 mA	5 V, 10 mA	5 V, 10 mA
Power Supply Voltage and Current Consumption of Internal Circuit (require external power supply)	24 V DC Max. 0.65 A	24 V DC Max. 0.65 A	24 V DC Max. 0.85 A
Power Supply for Field Device (require external power supply)	-	Dual-line (supply power per 16- point) 250 V AC: Max. 9.6 A 30 V DC: Max. 9.6 A 125 V DC: Max. 1.6 A	-
Insulation Resistance	At least 10 MΩ (500 V DC)	At least 10 MΩ (500 V DC)	At least 10 MΩ (500 V DC)
Withstanding Voltage	Between field device terminals and cases: 2 kV Between 24 V power terminals and cases: 500 V Between 24 V power terminals and field device terminals: 2 kV	Between field device terminals and cases: 2 kV Between 24 V power terminals and cases: 500 V Between 24 V power terminals and field device terminals: 2 kV	Between field device terminals and cases: 2 kV Between 24 V power terminals and cases: 500 V Between 24 V power terminals and field device terminals: 2 kV
Ambient Temperature and Humidity	0 to 50 °C, 10 to 90 %RH	0 to 50 °C, 10 to 90 %RH	0 to 50 °C, 10 to 90 %RH
Standards	Safety Standard [CE Marking], [CSA] (*3) EMC standards [CE Marking], [C-Tick Marking], [KC Marking]	Safety Standard [CE Marking], [CSA] (*3) EMC standards [CE Marking], [C-Tick Marking], [KC Marking]	EMC standards [CE Marking], [C-Tick Marking], [KC Marking] (*4)
Size	W: 482.6 mm x H: 132.5 mm (3U)	W: 482.6 mm x H: 177 mm (4U)	W: 482.6 mm x H: 132.5 mm (3U)
Weight	2.2 kg	2.6 kg	2.2 kg
