Relay Boards
|
Models |
Descriptions |
Contact |
Terminals |
Signal Cables |
Connectable Digital I/O Modules |
|
|
Modules |
Terminal Blocks |
|||||
|

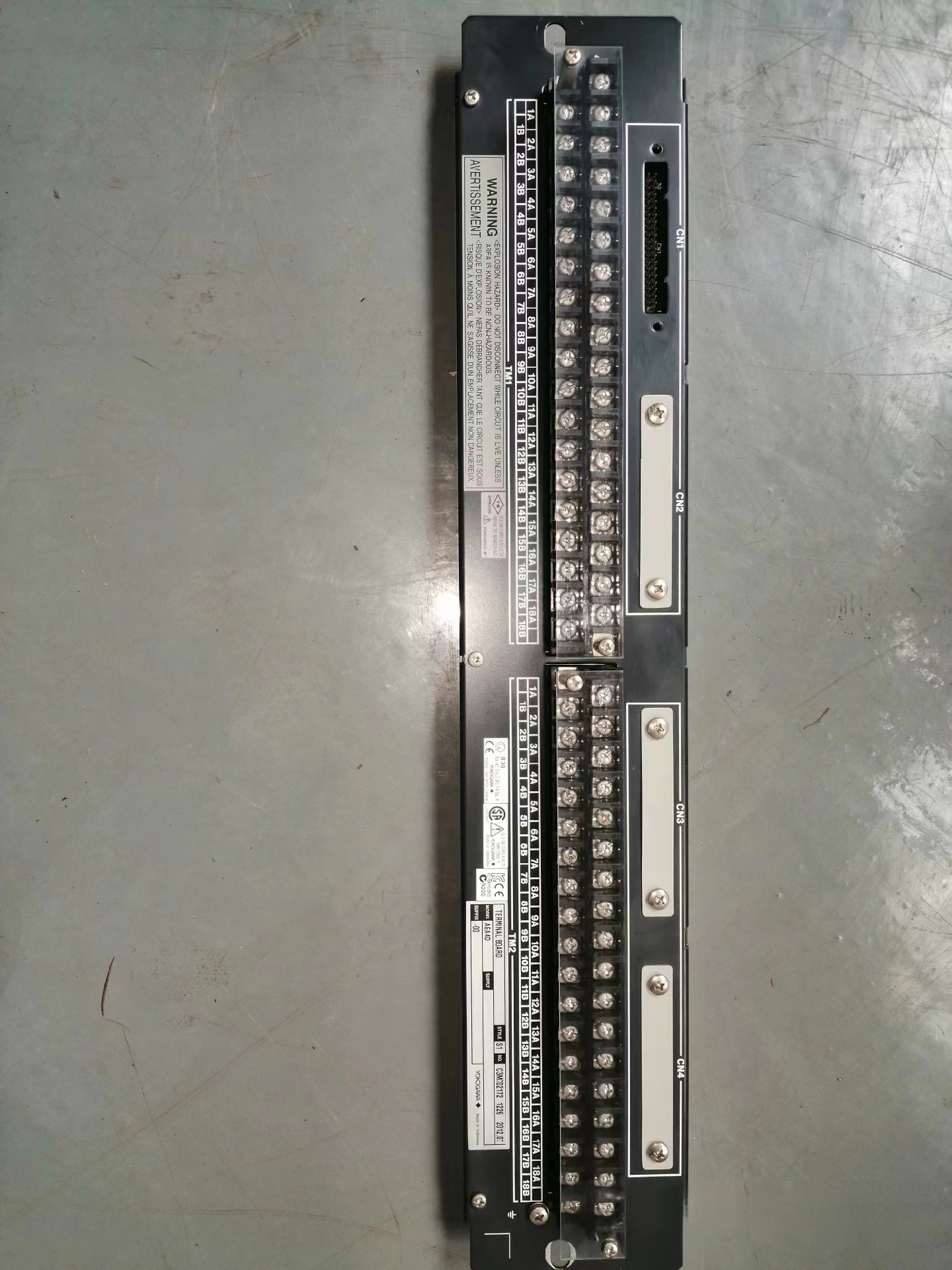

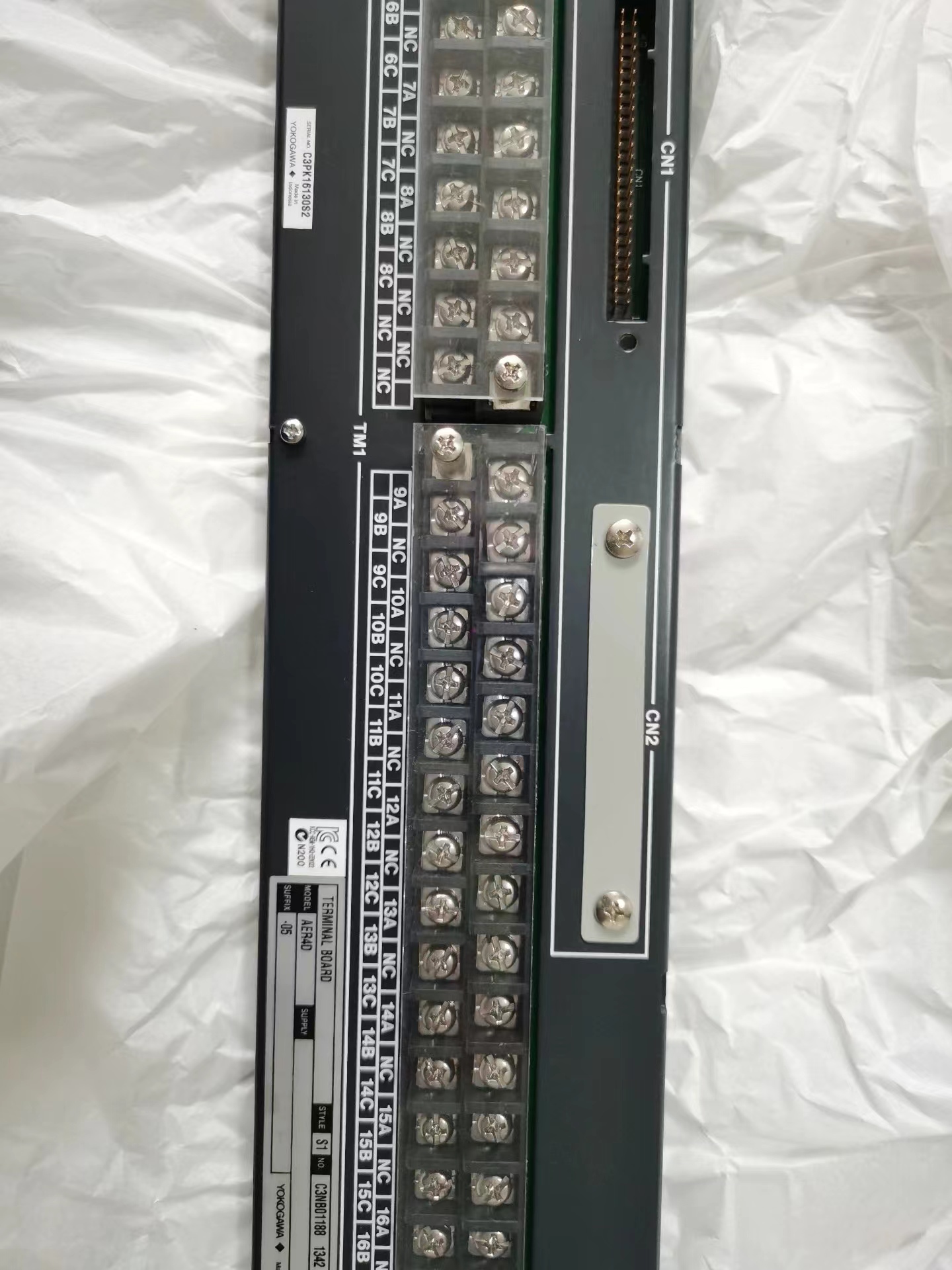

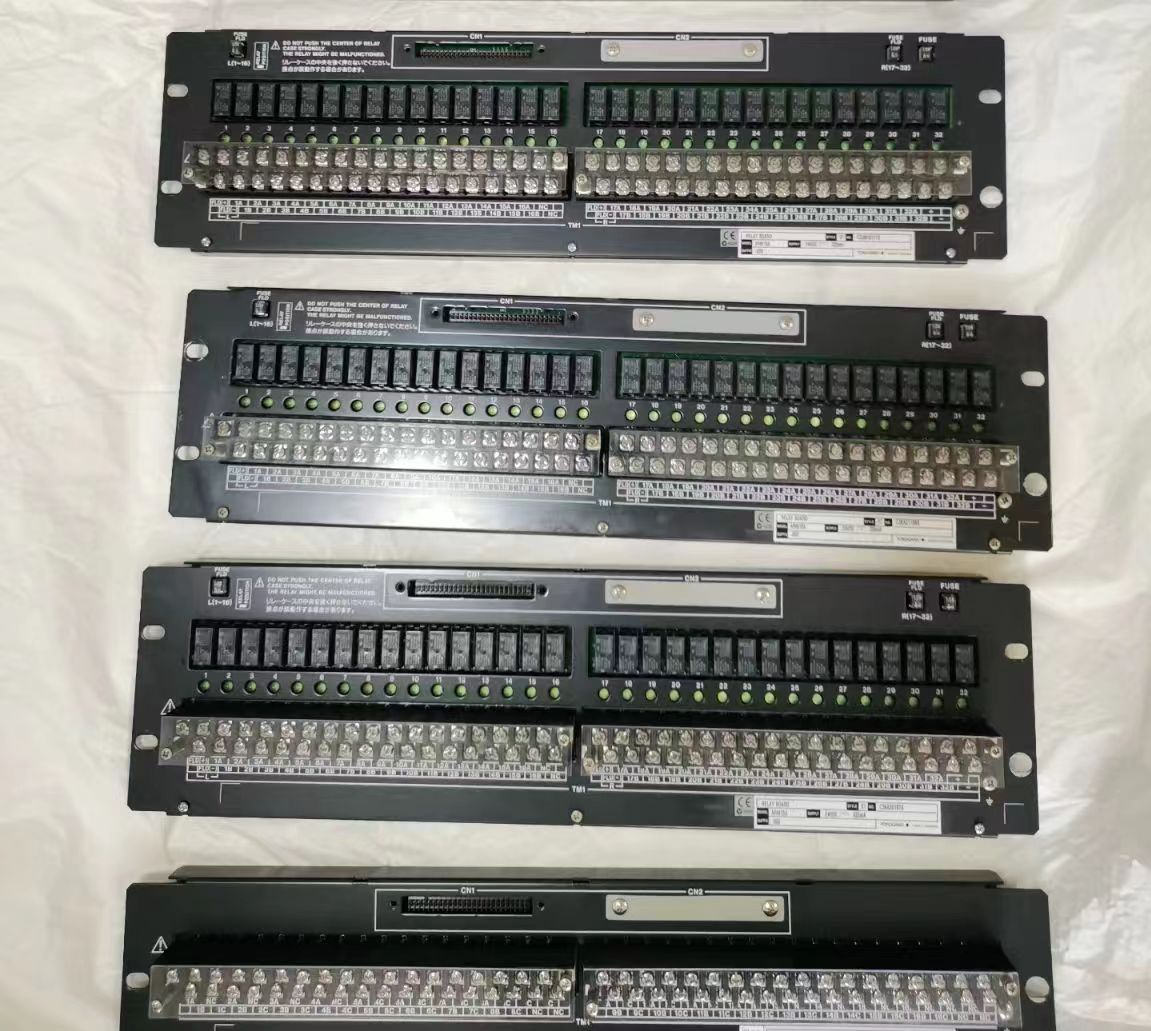

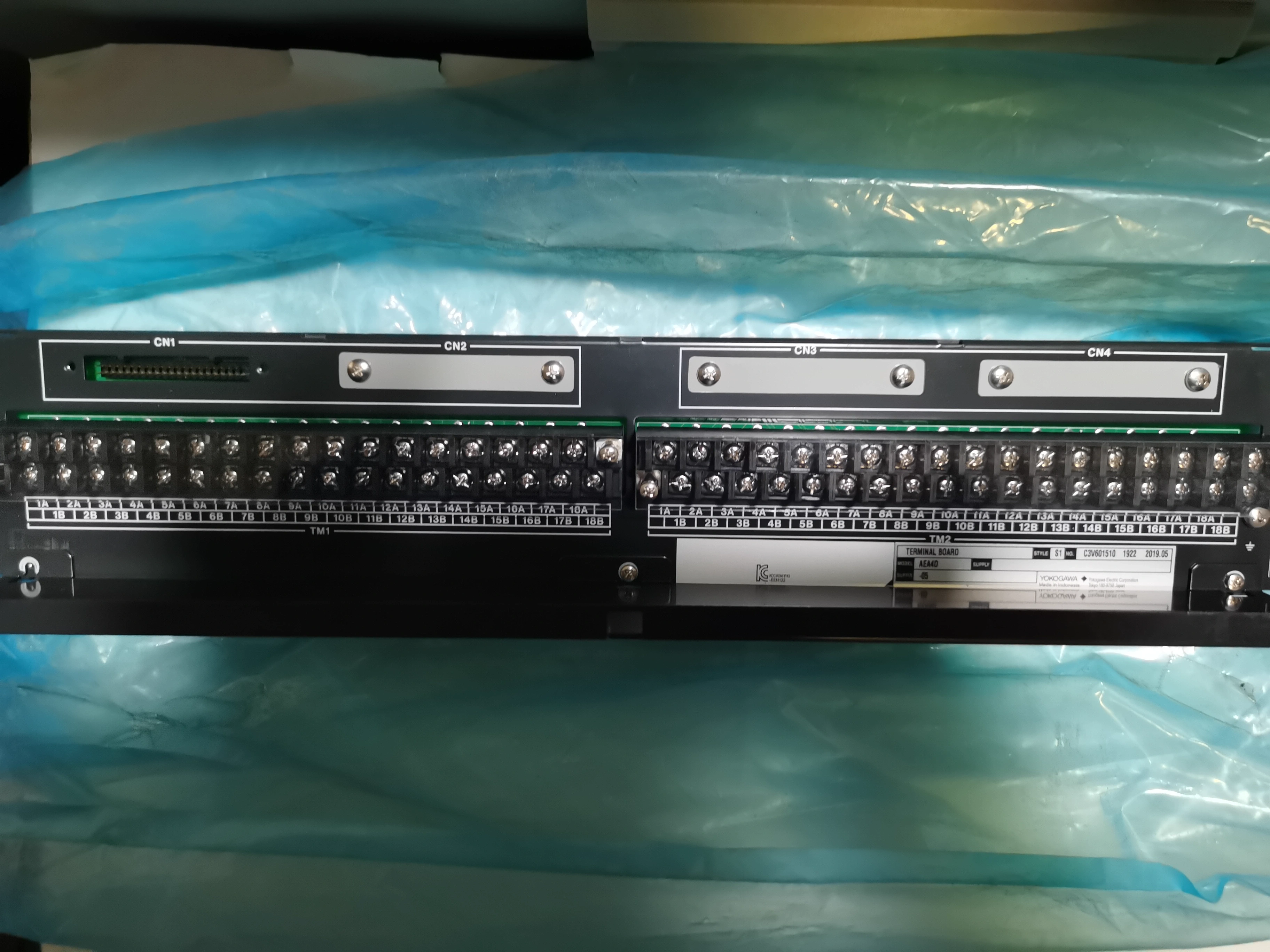

ARM15A |
Mechanical Relay Board |
32-point |
M4 screws |
AKB331 (for 32-point) |
ADV151 |
ATD5A |
|
AKB337 (for 64-point) |
ADV161 |
- |
||||
|
ARM55D |
32-point |
M4 screws |
AKB331 (for 32-point) |
ADV551 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV561 |
- |
||||
|
ARM55W |
32-point |
M4 screws |
AKB331 (for 32-point) |
ADV551 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV561 |
- |
||||
|
ARM55T |
32-point |
M4 screws |
AKB331 (for 32-point) |
ADV551 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV561 |
- |
||||
|
ARM55C |
32-point |
M3.5 screws |
AKB331 (for 32-point) |
ADV551 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV561 |
- |
||||
|
ARS15B-5 (48 V DC) |
Solid State Relay Board |
32-point |
M4 screws |
AKB331 (for 32-point) |
ADV151 |
ATD5A |
|
AKB337 (for 64-point) |
ADV161 |
- |
||||
|
ARS15M-1 (100 V AC) |
32-point |
Pressure clamp |
AKB331 (for 32-point) |
ADV151 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV161 |
- |
||||
|
ARS55M-1 (100 VAC) |
32-point |
Pressure clamp |
AKB331 (for 32-point) |
ADV551 |
ATD5A |
|
|
AKB337 (for 64-point) |
ADV561 |
- |
||||
| Model | ARM15A |
|---|---|
| Usage | Mechanical Relay Contact Input (Single / Dual-redundant) |
| Contact Points | 32-point |
| Terminals for Field Device Connection | M4 screws |
| Modules | ADV151 (DI: 32-point) + ATD5A (Terminal block) ADV161 (DI: 64-point) (*1) |
| Signal Cables | AKB331 (for 32-point) AKB337 (for 64-point) |
| Contact Input Signal | ON signal: 150 Ω or less OFF signal: At least 200 kΩ |
| External Contact Rating (Minimum Load) | 24 V DC, 13 mA (*3) |
| Power Supply Voltage and Current Consumption of Internal Circuit (require external power supply) |
24 V DC Max. 0.32 A |
| Power Supply for Field Device (require external power supply) |
Dual-line (supply power per 16-point) 24 V DC: Max. 0.3 A per one line |
| Insulation Resistance | At least 10 MΩ (500 V DC) |
| Withstanding Voltage | Between field device terminals and cases: 1.5 kV Between 24 V power terminals and cases: 500 V Between 24 V power terminals and field device terminals: 1.5 kV |
| Ambient Temperature and Humidity | 0 to 50 °C, 10 to 90 %RH |
| Standards | EMC standards [CE Marking], [C-Tick Marking], [KC Marking] (*2) |
| Size | W: 482.6 mm x H: 132.5 mm (3U) |
| Weight | 2.2 kg |
