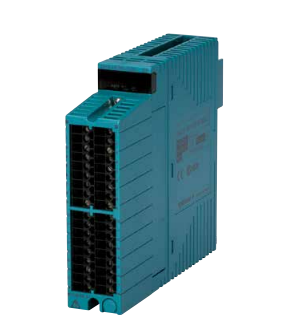

| Model | NFDV532 |
| Number of output channels | 4-channel : Up Pulse/Down Pulse |
| Rated applied voltage | 24 V DC |
| Load voltage (*1) | 24 V DC, 25 mA |
| Field power supply voltage range | 20.4 to 26.4 V DC |
| Output ON voltage maximum value | 2 V DC |
| Leak current maximum value when output OFF | 0.1 mA |
| Output format | Current sink |
| Maximum load current (*2) | 100 mA/1channel, 26.4 V |
| Withstanding voltage | Between output signal and system : 2000 V AC for 1 minute (*5) |
| Output fallback (*3) (*4) | HOLD : Reset all the output channels after outputting all pulse signals when a fallback is detected. OFF : Resets all the output channels immediately to off when the fallback action is triggered. NO : Performs no fallback action. |
| Pulse output accuracy | 2 ms Min., 2 ms increments (error: 1 ms Max.) |
| Maximum current consumption | 550 mA (5 V DC) 25 mA (24 V DC, field power supply) |
| Weight | 0.2 kg |
| External connection | Pressure clamp terminal, MIL connector cable (*5) |
