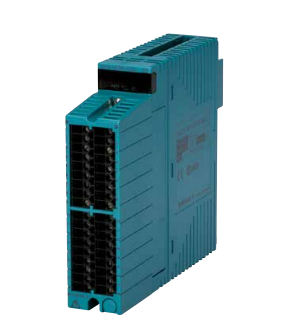

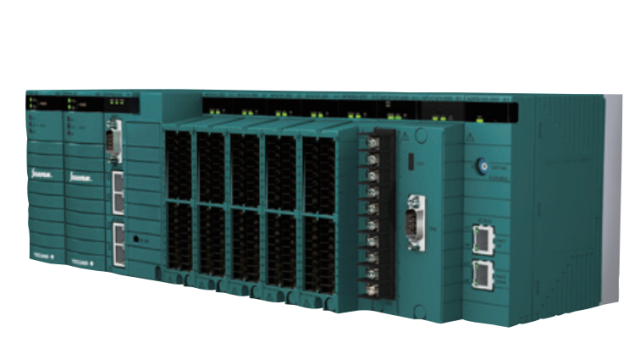

Yokogawa Analog I/O Modules NFAI835-S51

NFAI835-S51 Yokogawa Analog I/O Modules
 Current Input Module and Current I/O Module (Isolated Channels)
The Current Input Module receives signals of 4 to 20 mA. The Current I/O Module receives and outputs signals of
4 to 20 mA. These two modules are isolated between the input/output signals and the system as well as between channels.

Manufacturer:
YOKOGAWA
Model:
NFAI835-S51
  • Yokogawa Analog I/O Modules NFAI835-S51
  • Yokogawa Analog I/O Modules NFAI835-S51
  • Yokogawa Analog I/O Modules NFAI835-S51
  • Yokogawa Analog I/O Modules NFAI835-S51
  • Yokogawa Analog I/O Modules NFAI835-S51

Description

Yokogawa Analog I/O Modules NFAI835-S51

 Current Input Module and Current I/O Module (Isolated Channels)
The Current Input Module receives signals of 4 to 20 mA. The Current I/O Module receives and outputs signals of
4 to 20 mA. These two modules are isolated between the input/output signals and the system as well as between channels.
Items Specifications
Model NFAI135 (*5) (*8) NFAI835 (*5) (*8)
Number of I/O channels 8-channel input, isolated channels 4-channel input/4-channel output, isolated channels
I/O signal 4 to 20 mA Input: 4 to 20 mA Output: 4 to 20 mA
Allowable input current 25 mA 25 mA
Overcurrent protection Provided Provided
Withstanding voltage (*7) Between input/output and system: 500 V AC for 1 minute, between channel: 500 V AC for 1 minute
Allowable load resistance 0 to 750 Ω
Circuit-open detection 0.65 mA or less
Accuracy ±0.1% of full scale Inputs: ±0.1% of full scale Outputs: ±0.3% of full scale
Data refresh cycle 10 ms
Input step response time 100 ms 100 ms
Output step response time 100 ms
Output fallback (*4) Set for each channel(*3)
Transmitter power supply 20.2 to 29.3 V (*2) 20.2 to 29.3 V(*2)
Temperature drift Max. ±0.01%/°C
Maximum current consump
tion
360 mA(5 V DC) 360 mA(5 V DC)
450 mA (24 V DC) 450 mA (24 V DC)
Weight 0.3 kg
External connection Pressure clamp terminal, MIL connector cable (*7)
HART Communication(*6) Available Available

 *1: A voltage drop by up to 0.8 V may occur due to the internal protection circuit.
*2: Depends on the actual voltage applied by analog field power supply (24 V DC) via base module.
*3: HOLD: To hold output in which fallback is detected.
SETV: To output a specified value when fallback is detected.
*4: Select fallback [Yes/No] for each module.
If [Yes] is selected for fallback, set [HOLD/SETV] for each channel.
Fallback detection time: 4 seconds
*5: When this I/O module is used, 24 V DC needs to be supplied to an analog field power supply terminal of the power supply
module.
*6: For HART function specifications, refer to GS 34P02Q53-01E HART Communication Functions.
*7: The withstanding voltage for using MIL connector cable depends on the electrical specifications of its cable. If you are using
KMS40 cable, withstanding voltage of between input and system is 500 V AC for 1 minute.
*8: A Zener barrier is not allowed to be connected with this module. Use an isolation barrier when the module is used in
intrinsically safe application.
