| Items | Specifications |
|---|---|

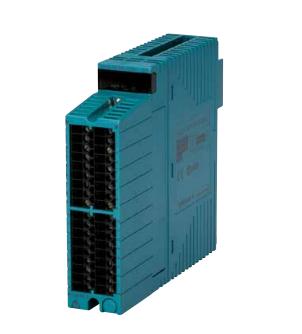

| Model | NFAI543 (*3) |
| Number of output channels | 16-channel output, isolated |
| Output signal | 4 to 20 mA |
| Withstanding voltage | Between output and system: 1500 V AC for 1 minute (*5) |
| Allowable load resistance | 0 to 750 Ω |
| Circuit-open detection | 0.65 mA or less |
| Accuracy | ±0.3% of full scale |
| Data refresh cycle | 10 ms |
| Output step response time | 100 ms |
| Output fallback (*2) | Set for each channel (*1) |
| Temperature drift | Max. ±0.01%/°C |
| Maximum current | 230 mA (5 V DC) |
| consumption | 540 mA (24 V DC) |
| Weight | 0.4 kg |
| External connection | Pressure clamp terminal, MIL connector cable (*5) |
| HART Communication(*4) | Available |
