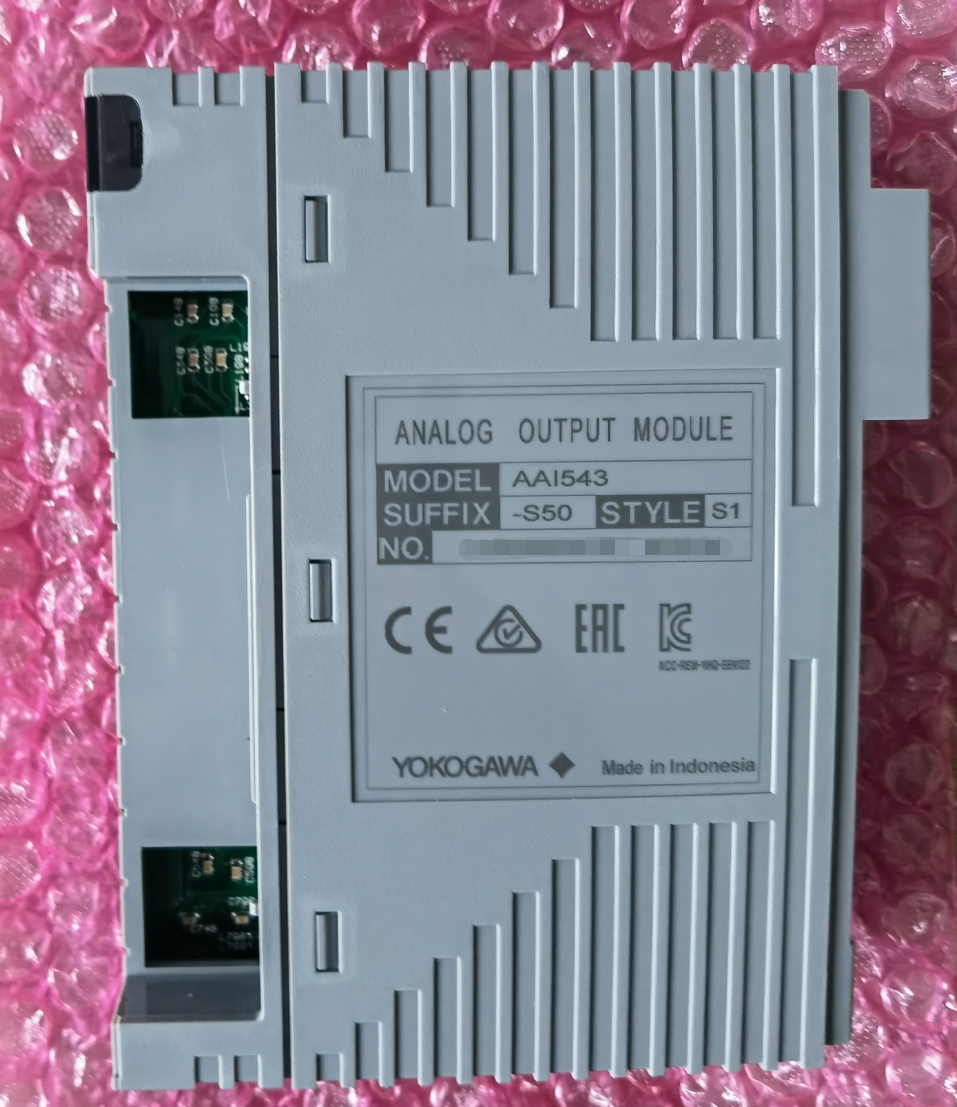

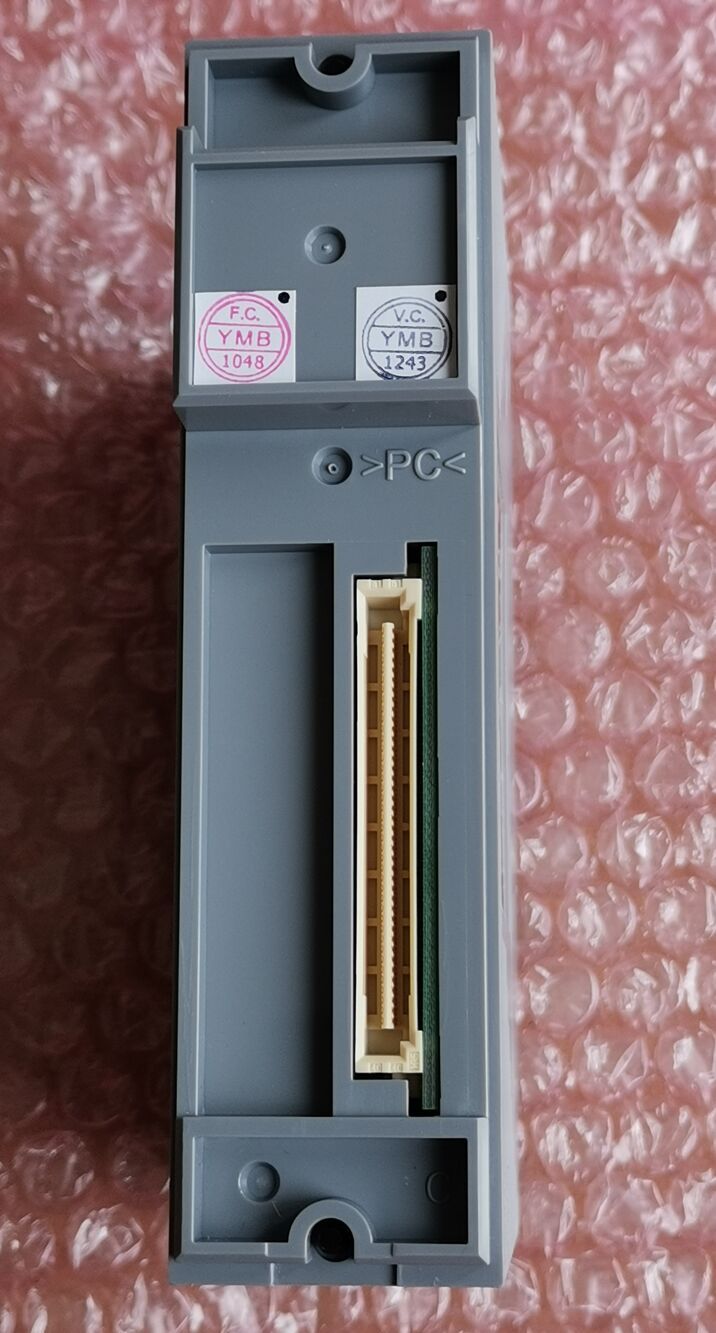

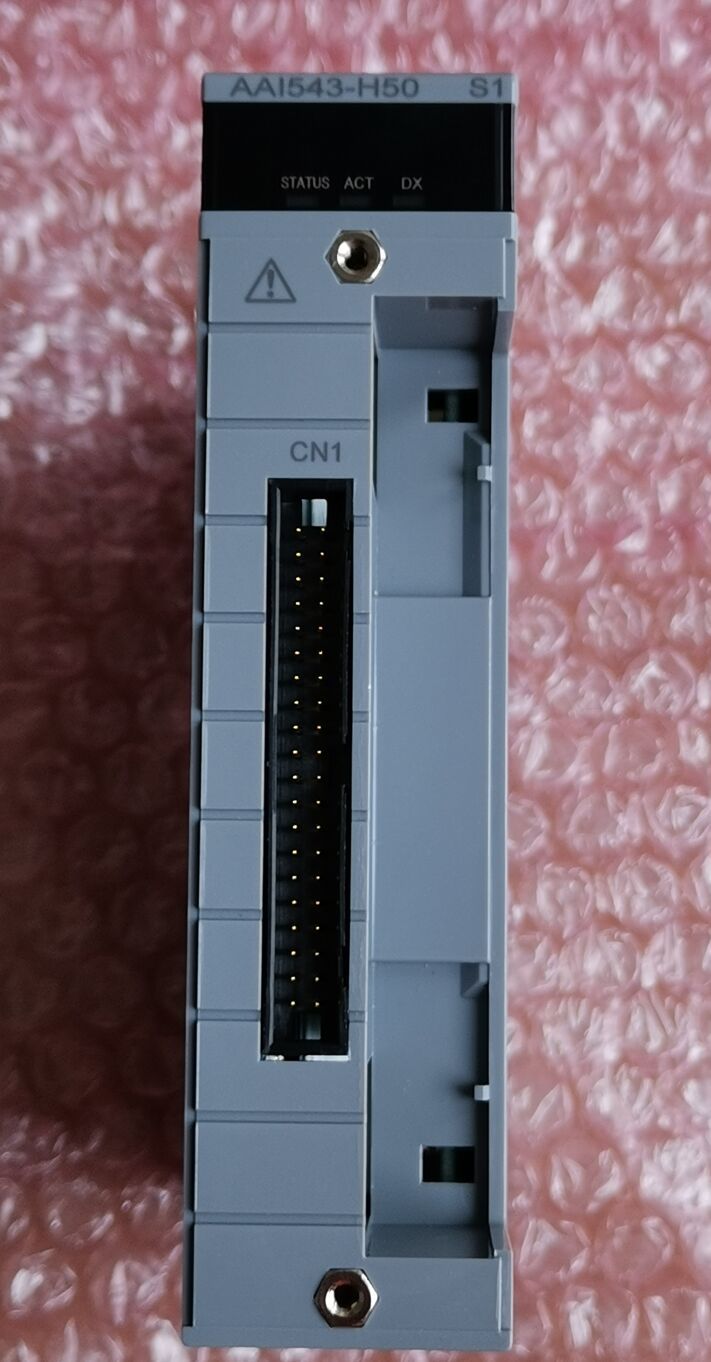

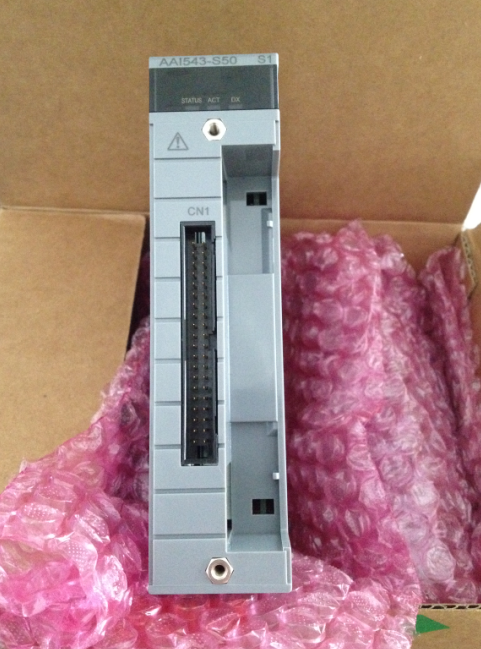

yokogawa Analog I/O Modules AAI543-S50

AAI543-S50 Yokogawa Analog I/O Modules (for FIO)
Manufacturer:
YOKOGAWA
Model:
AAI543-S50
  • yokogawa Analog I/O Modules AAI543-S50
  • yokogawa Analog I/O Modules AAI543-S50
  • yokogawa Analog I/O Modules AAI543-S50
  • yokogawa Analog I/O Modules AAI543-S50

Description

yokogawa Analog I/O Modules AAI543-S50

Current Output Modules (Isolated)
This module outputs 4 to 20 mA.
It can be used in dual redundant configuration. (*1)
Items Specifications
Model AAI543-0 AAI543-1(*2)
Number of output channels 16, isolated, standard switch-over
response in redundant configuration (*3)
16, isolated, fast switch-over response in
redundant configuration (*3)
Output signal 4 to 20 mA
Withstanding voltage Between output and system: 1500 V AC, For 1 minute (*4)
Allowable load resistance 0 to 750 Ω
Circuit-open detection Less than 0.65 mA
Accuracy ±48 µA
Data update period 10 ms
Drift due to ambient temperature change ±16 µA/10 ˚C
Maximum current consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.4 kg
External communication Pressure clamp terminal, MIL connector cable, Dedicated cable (KS1)
HART communication (*5) Available

*1: Use two modules with the same suffix code for use in dual-redundant configuration.
*2: When AAI543-1 is installed in a remote node, the ambient temperature should be 0 to 60 °C.
*3: The time during which the output to the field falls below 4 mA at switch-over is 100 ms at maximum for AAI543-0
(standard response) and 2 ms at maximum for AAI543-1 (fast response).
When any fast response field devices are connected to dual redundantly configured modules, AAI543-1 (fast response) should be used.
*4: The withstanding voltage for using the dedicated cable is 500 V AC (between the input signal and the system).
The withstanding voltage for using MIL connector cable depends on the electrical specifications of its cable.
*5: When installing the module with HART function to a remote node, the firmware of EB401 must be Rev 2 or later.
