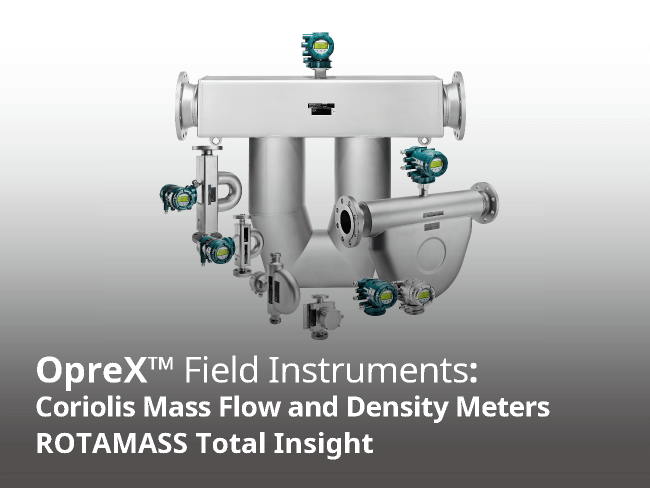

ROTAMASS Total Insight Coriolis Mass Flow and Density Meters

Total Insight
In the last decade, the use of Coriolis Mass Flow and Density Meters has been changing from general purpose to supporting your needs in specific applications.
While the technological complexity increased, the demand for simple operation and handling is also a rising requirement.

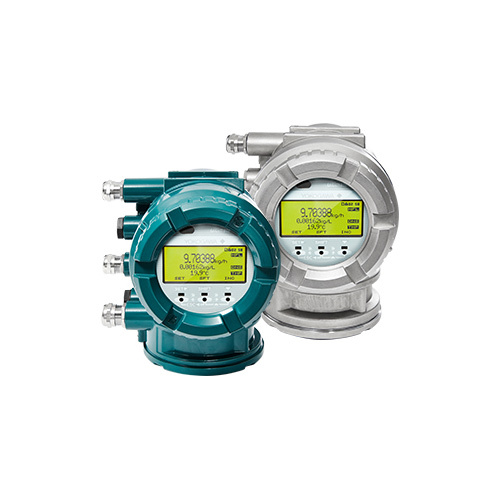

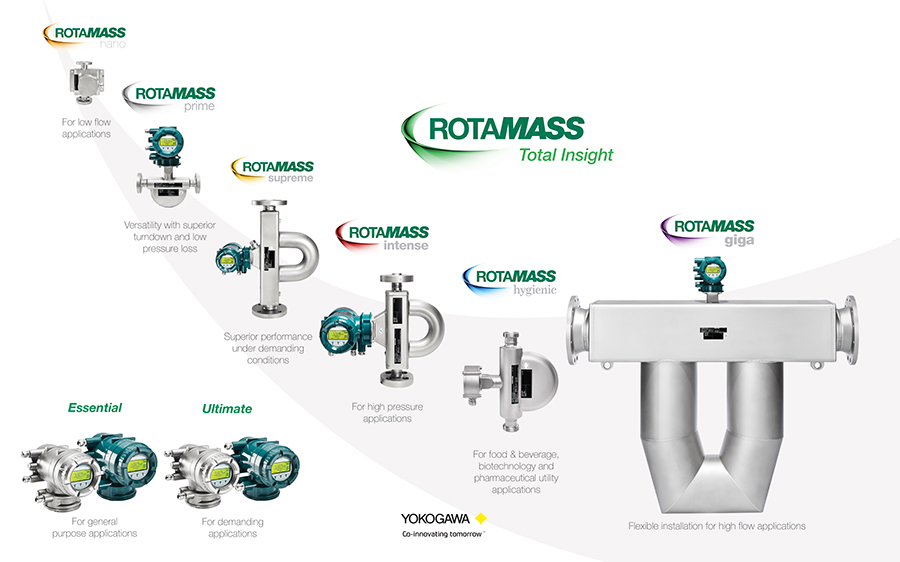

Yokogawa answers these needs by offering six dedicated product lines with two specialized transmitters allowing the highest flexibility -the Rotamass Total Insight

Image Zoom

Typical Application Example

The product is ideal for industrial processes such as petrochemicals, chemicals, food and beverages.
Wetted material with excellent wear resistance, corrosion resistance, and permeation resistance is available to provide high precision and stable flow measurement even high pressure & high temperature.

Specification & Function

Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.

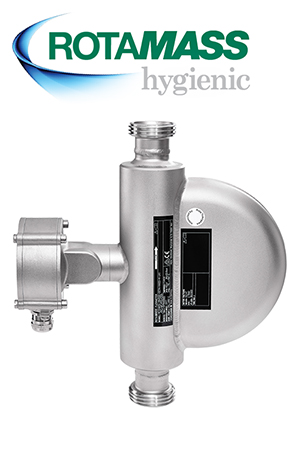

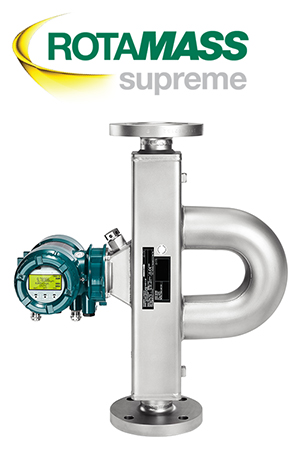

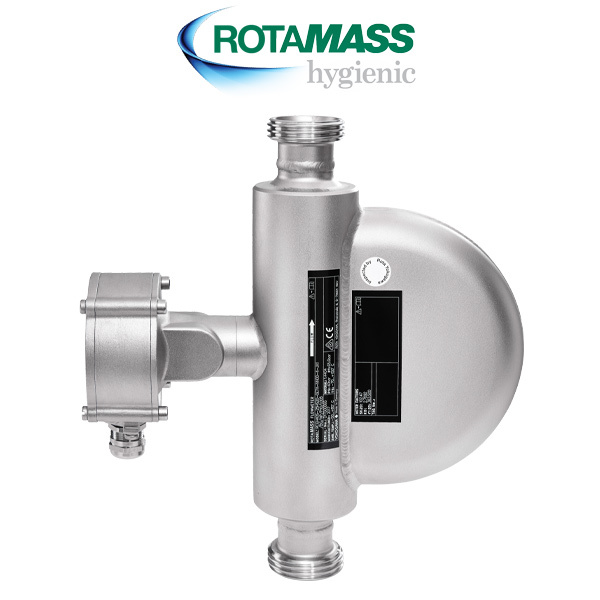

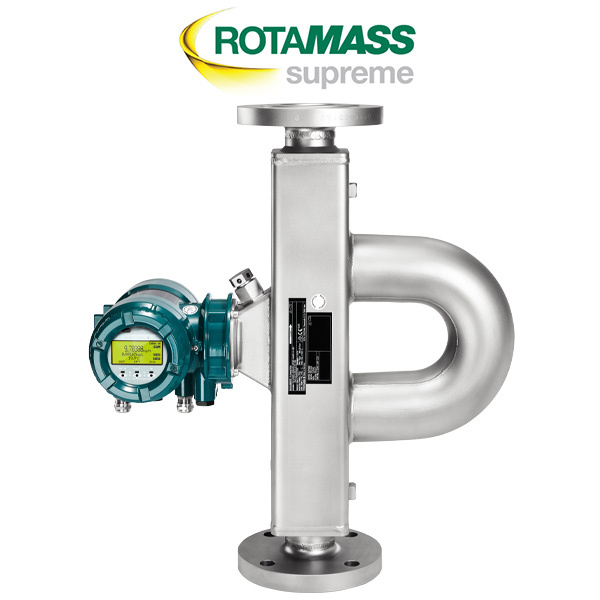

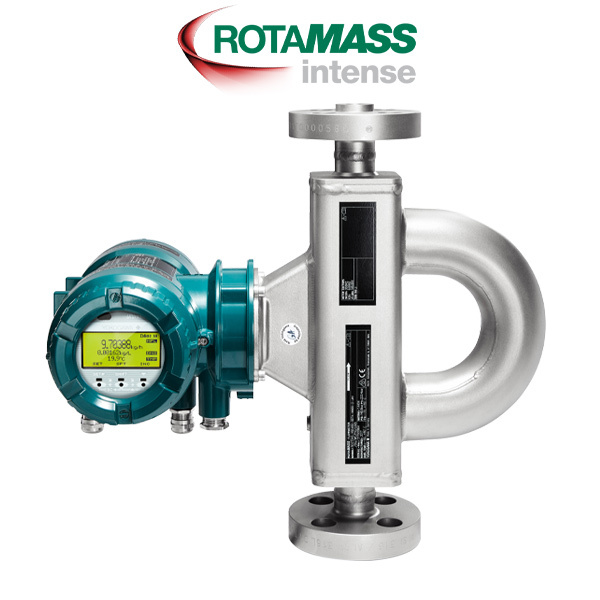

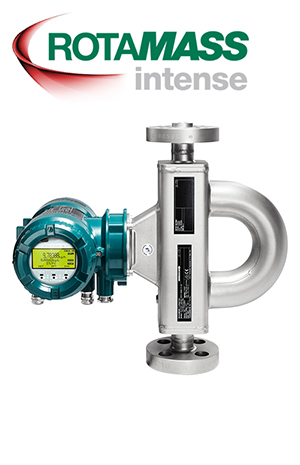

Product Line			Rotamass Nano		Rotamass Prime	Rotamass Hygienic	Rotamass Supreme	Rotamass Intense	Rotamass Giga

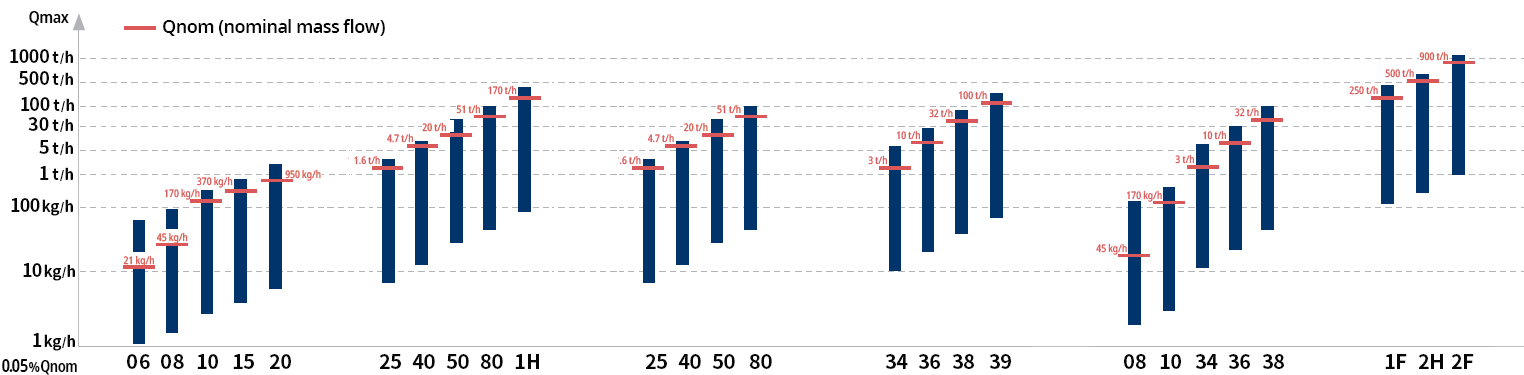

Flow Range
Liquid process fluids
Liquids in general			●		●	●	●	●	●
Aggressive liquids			○		-	-	●	●	○
High viscous fluids			○		●	●	○	○	○
Gaseous process fluids
Gases in general			○		●	○	○	○	●
Low density gases			○		●	●	○	○	○
Mixed process fluids
Unmixable or mixable liquids			●		●	●	●	●	●
Liquids with entrained gas			●		●	●	●	●	○
Process conditions
Process temperature			-50 to +260 °C -58 to +500 °F		-70 to +200 °C -94 to +392 °F	-70 to +140 °C -94 to +284 °F	-196 to +350 °C -321 to +662 °F	-70 to +150 °C -94 to +302 °F	-70 to +350 C or +200 C (Giga 2F) -94 to +662 F or +392 F (Giga 2F)
Process pressure up to			285 bar or 460 bar *1 4183 psi or 6672 psi *1		100 bar 1450 psi	40 bar 580 psi	100 bar or 250 bar *1 1450 psi or 3626 psi *1	up to 700 bar 10000 psi	100 bar or 180 bar *1 1450 psi or 2610 psi *1
Line sizes			DN15 to DN40 1/4 in. to 1 1/2 in.		DN15 to DN125 3/8 in. to 5 in.	DN25 to DN80 1 in. to 3 in.	DN15 to DN125 3/8 in. to 5 in.	9/16 or 3/4“in. AutoClave 1/4 in. to 2 in.	DN100 to DN250 4 in. to 10 in.
Accuracy
Mass flow for liquids up to			± 0.1 %		± 0.1 %	± 0.1 %	± 0.1 %	± 0.1 %	± 0.1 %
Mass flow for gas up to			± 0.50 %		± 0.35 %	± 0.35 %	± 0.35 %	± 0.50 %	± 0.35 %
Density for liquids up to			± 0.5 g/l		± 0.5 g/l	± 0.5 g/l	± 0.5 g/l	± 0.5 g/l	± 2.0 g/l
Turndown flat accuracy			○		●	●	○	○	-
Materials and process connections
Material of wetted parts			Alloy C-22/2.4602 & 316L/1.4404		316L/1.4404	316L/1.4404	316L/1.4404 or alloy C-22/2.4602 or 304/1.4301 *1	316L/1.4404 or alloy C-22/2.4602 or 304/1.4301*1	316L/1.4404 or alloy C-22/2.4602 (Giga 1F only)
Flange process connections			EN, ASME, JPI, JIS		EN, ASME, JPI, JIS	−	EN, ASME, JPI, JIS	ASME	EN, ASME, JIS
Threaded process connections			G, NPT		G, NPT	DIN11851, SMS1145	G, NPT	G, NPT	−
Clamp process connections			DIN32676		−	DIN32676, JIS/ISO2852	DIN32676, JIS/ISO2852	−	−
Sensor design
Insulation and heat tracing options			●		-	-	●	-	●
Rupture disk			○ *1		-	-	●	●	●
Customer & NAMUR face-to-face length			●		●	-	●	-	○
Approvals / Certificates
3-A, EHEDG, EC1935:04 and EC2023:06			-		-	●	●	-	-
Marine application			●		●	●	●	●	○
Functional Safety			SIL 2 (SIL3)
Custody transfer application			NTEP (Nano 20)		NTEP	NTEP	NTEP, INMETRO	NTEP	NTEP, INMETRO
Hazardous area approvals			IECEx, ATEX, UKEx, FM (USA/Canada), NEPSI, INMETRO, PESO, EAC Ex, Taiwan Safety Label, Korea Ex, Japan Ex, ECAS Ex, Ukraine Ex

●: supported    ○: supported under certain conditions    -: not supported    *1: available on demand

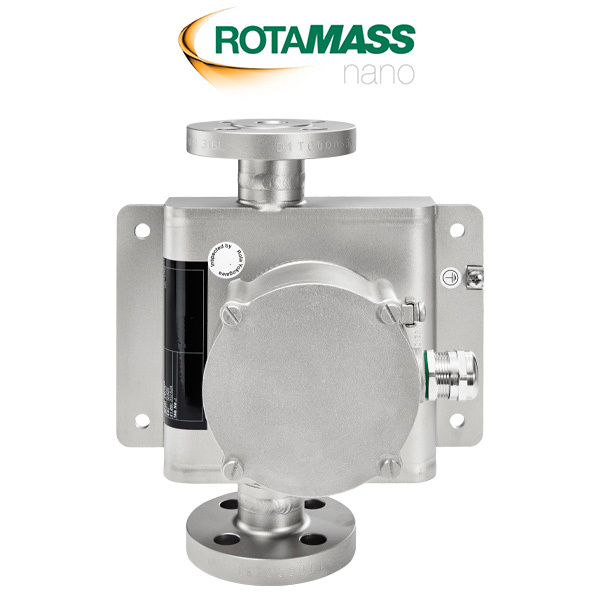

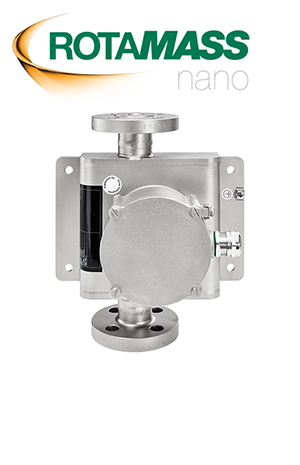

ROTAMASS Nano

When Every Drop Counts The world's smallest dual bent tube Coriolis Mass Flow and Density Meters series for highly accurate measurement at lowest flows. The dual tube design compensates for fluctuations of density, temperature, pressure and environment conditions. This provides a consistent repeatable and accurate measurement especially for small size Coriolis Mass Flow and Density Meters. Typical Applications Batching Dosing Blending Chemical injection Dosing systems High-pressure gases Liquid and gas low flow measurement Precision coatings Metering pump control Metrology R&D laboratory Vacuum thin film coating

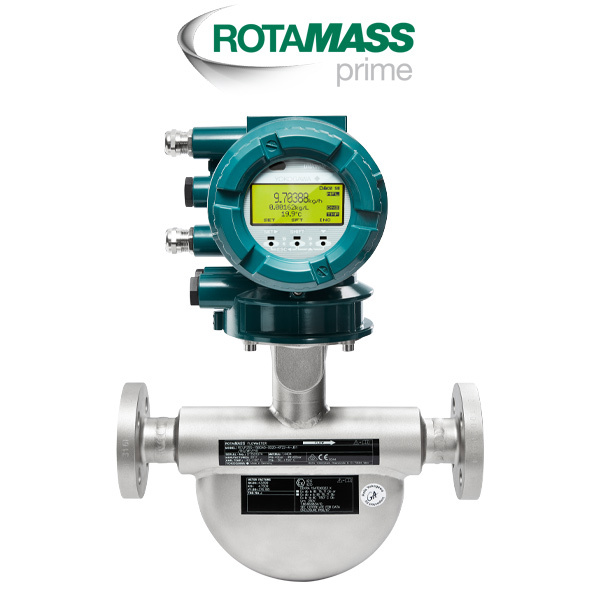

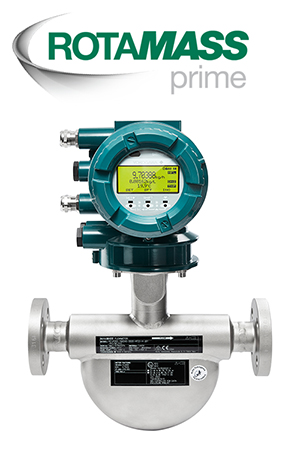

ROTAMASS Prime

Versatile in Applications The versatile Coriolis Mass Flow and Density Meters with superior turndown and lowest pressure drop in the market. Ideal for a broad range of standard applications, this series is a flexible and cost effective solution for highly accurate flow and density measurements. Features such as concentration measurement or the Tube Health Check function allow the meter to be adjusted to customer needs. Typical Applications Batching Blending Chemical recovery Continuous reaction In-line concentration and density measurement Catalyst feed Filling and dosing Mass balance Net oil computing Palm oil Process control

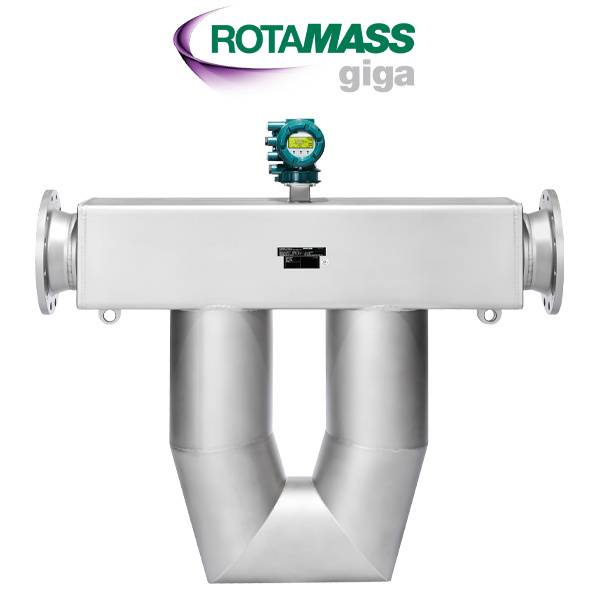

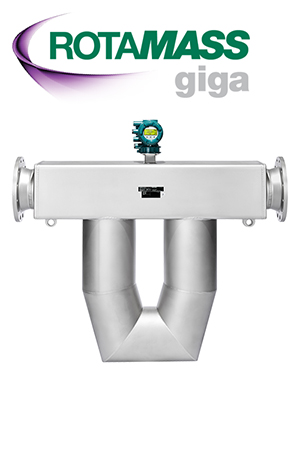

ROTAMASS Giga

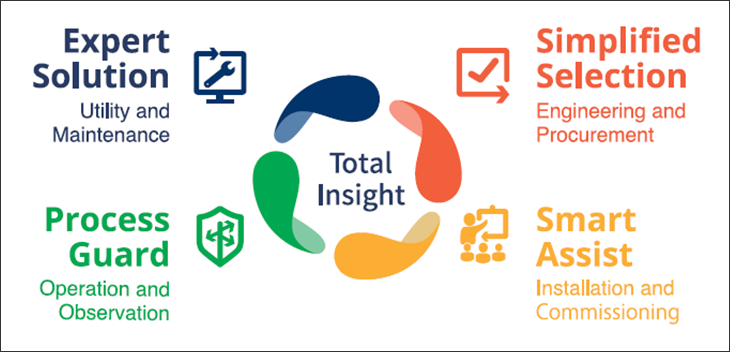

Total Insight - Simplified Selection -

Engineering & Procurement

Have you ever struggled to select the most suitable product/specification for the process being measured?

Total Insight - Smart Assist -

Installation & Commissioning

Have you ever been struggling to set up the necessary parameters at startup time?

• Wizard Function
  With Rotamass TI , it is available to set interactively the minimum required parameters for operation start in an interactive manner.
• Multiple Languages
  Rotamass TI series supports not only English but also 11 languages in total: French, German, Italian, Spanish, Portuguese, Russian, Chinese, Polish, Kazakh and Japanese. This helps to prevent stress, misunderstandings, and parameter setting errors that occur when using languages that you are not familiar with.
• Concentration Calculation
  Rotamass TI combines mass flow measurement with an online and user-optimized Concentration Measurement function for suspensions, emulsions and solutions.
  Pre-installed data sets support a convenient configuration for many different process fluids and can be adapted individually to the process characteristics.
  As concentration measurements are highly reliant on temperature and density, Rotamass TI combines a precise coupled temperature measurement with different density calibration options. This allows high accurate and most reliable results.

Total Insight - Process Guard -

Operation & Observation

Have ever been wanted to know the inside condition of a product without removing it from the production line?

• Total Health Check Function

  With Total Health Check, Rotamass TI offers an effective maintenance and diagnostic tool for a complete meter verification without disturbing your process.
  With FieldMate software or any FDT/DTM 1.2, 2.0+ compliant software tool you can perform Total Health Check within few minutes and check:

  • Drive circuit
  • Sensor circuit
  • Temperature circuit
  • Hardware and software
  • Tube Health

• Using Total Health Check makes it easy to determine the condition of the flowmeter, without disturbing running measurements, and to record the results in a verification report.

• Tube Health Check Function
  This unique function detects stiffness changes of the measuring tubes, which can occur due to corrosion, abrasion or clogging.
  This is of particular importance, because changed measuring tube stiffness is directly affecting the mass flow measurement.
  The Tube Health Check is an in-line verification and can be individually adapted to your process conditions.
  • Frequency of checks (single or automatic test with predefined intervals)
  • Definition of alarm levels
  • Yokogawa’s FieldMate using DTM delivers a complete report and indicates a clear verification result

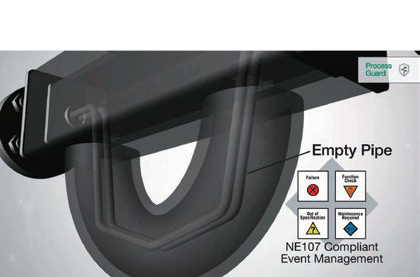

• Event Management
  Rotamass TI can set the display, output signal, recording, and other operations for events such as alarms and warnings.
  It is possible to record device data before and after the occurrence of an event such as an alarm, and to log the process value to the microSD with the occurrence of an event as a trigger.
  In addition, events can be classified and set according to NAMUR NE107.

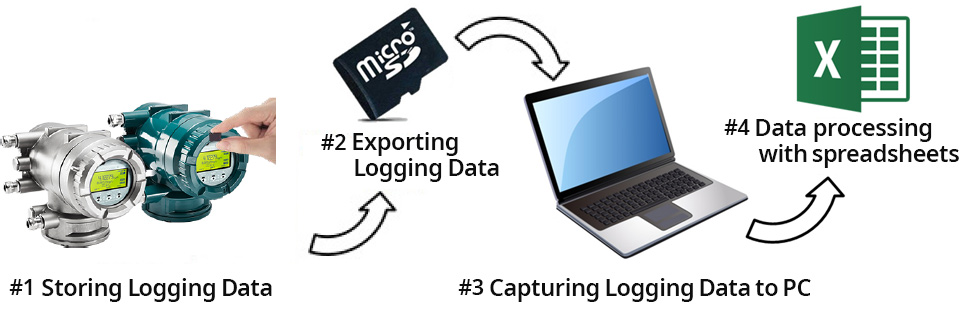

• Data Logging Function
  Rotamass TI series can be equipped with a microSD card and can store process information.

  This makes it possible to record process information simply if there is a device itself. Also, data is stored in text format.
  Therefore, analysis using spreadsheet software is also possible by importing data into a PC via a microSD card.

Total Insight - Expert Solution -

Utility & Maintenance

Have you ever taken the time to backup device parameters, copy parameters to replacement devices, etc?

• Data Mobility
  Rotamass TI series is equipped with a microSD card and can store process information and Instruction manual, drawing , certification as user documents.
  This makes it possible to record process information simply if there is a device itself. Also, data is stored in text format.
  Therefore, analysis using spreadsheet software is also possible by importing data into a PC via a microSD card.

Flexibility Function

• Features on Demand
  Market requirements and process conditions are changing. Features on Demand (FOD) contain valuable functions which can be activated at any time, even after installation and anywhere in the world:
  • Concentration measurement functions
  • Net Oil Computing function
  • Batching function
  • Viscosity function
  • Function for measurement of heat quantity
  • Tube Health Check

• Universal Power Supply
  Thanks to its universal power supply Rotamass TI is ready to be effortlessly installed all over the world.

• Wide Range of I/O Combinations
  The wide range of I/O combinations allows an individual configuration specific to your system.

• Short Face-to-Face Length
  The short face-to-face length of our Coriolis flowmeter can be combined with customer specific installation length options.

• Dynamic Pressure Compensation
  For applications with fluctuations in pressure a dynamic compensation is important to keep accurate and reliable mass flow measurement or gas volume measurement based on density calculation.
  With Rotamass TI and the Dynamic Pressure Compensation function you can benefit from continuous and highly accurate results.

Technical Information

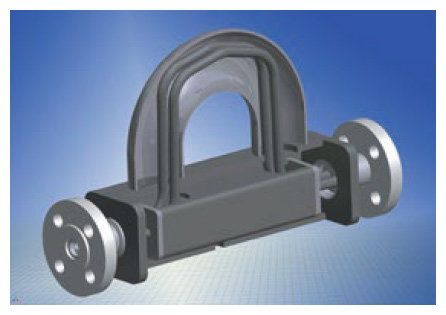

Sensor Structure

• Box-in-Box



  Optimum decoupling of core measuring element from external influences by proven box-in-box design.

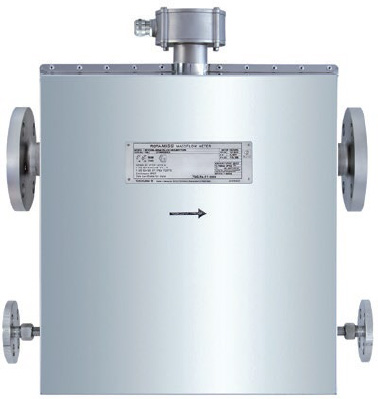

• Heat Trace Jacket



  Supported by robust and durable sensor design, our factory-fitted insulation and heat tracing solutions offer perfect insulation, continuous heating along the entire flow path and purging of the heating fluid. This is enabling to handle high temperature, viscous process fluids or molten fluids like sulfur.
