OpreX is the comprehensive brand for Yokogawa’s industrial automation (IA) and control business and stands for excellence in the related technology and solutions. It consists of categories and families under each category. This product belongs to the OpreX Field Instruments family that is aligned under the OpreX Measurement category.

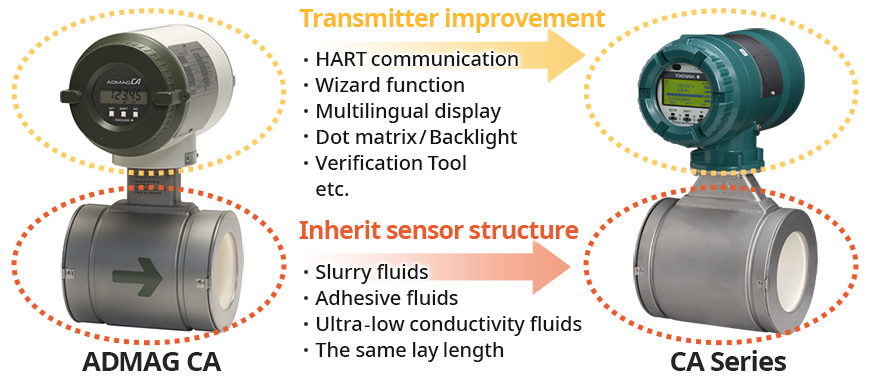

About Magnetic Flowmeters CA SeriesThe CA Series is the successor to the ADMAG CA series. |
 |

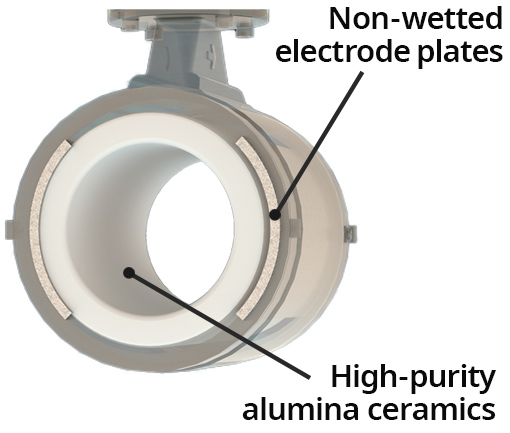

Sensor StructureStructure That Can Be Measured Even in Highly Concentrated Slurry or Insulator-Adhering Fluids
|
 |

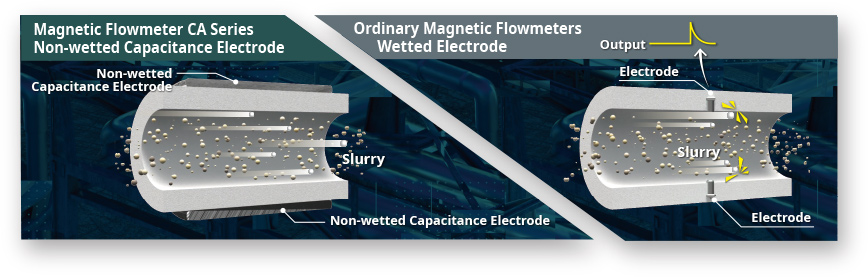

Slurry FluidsStable Measurement Is Possible Even in Fluids Containing Slurry Such as Latex and Calcium Carbonate The CA Series electrode is structured so that it does not come into contact with the fluid. The highly concentrated slurry fluid does not come into contact with the electrodes. Therefore, electrical noise generated by contact between the slurry and the electrode is not physically generated. |
 |

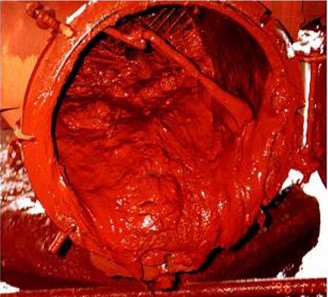

Adhesive FluidsStable Measurement Is Possible Even for Fluids Containing Insulators Such as Waste Fluids and Red Mud The surface of the ceramic measuring tube is smoother (Ra 1.6) and has a structure that prevents insulation from sticking to it. Even if an insulator adheres, the CA Series has no effect on measurement because of the measurement principle of the capacitive equation. |
 |

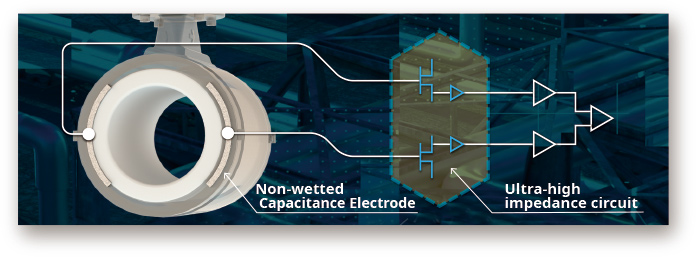

Ultra-Low Conductivity FluidsUltra-Low Conductivity Fluids Such as Pure Water Can Be Measured Capacitive electrodes and high impedance circuits make it possible to measure ultra-low conductivity fluids. |
 |
* If the diameter is 100 mm or less, span error may occur when measuring fluids with conductivity of 0.1 µS/cm or less. Please consult us for fluid measurements with a conductivity of less than 0.1 µS/cm.

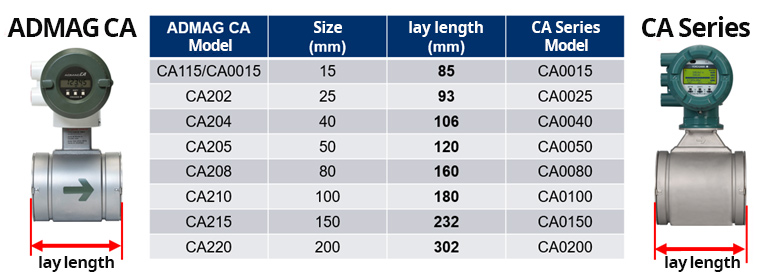

Customer Piping Can Be Replaced Without Modification
The lay length between the CA Series and ADMAG CA are the same. Therefore, there is no additional cost for customer plumbing.
