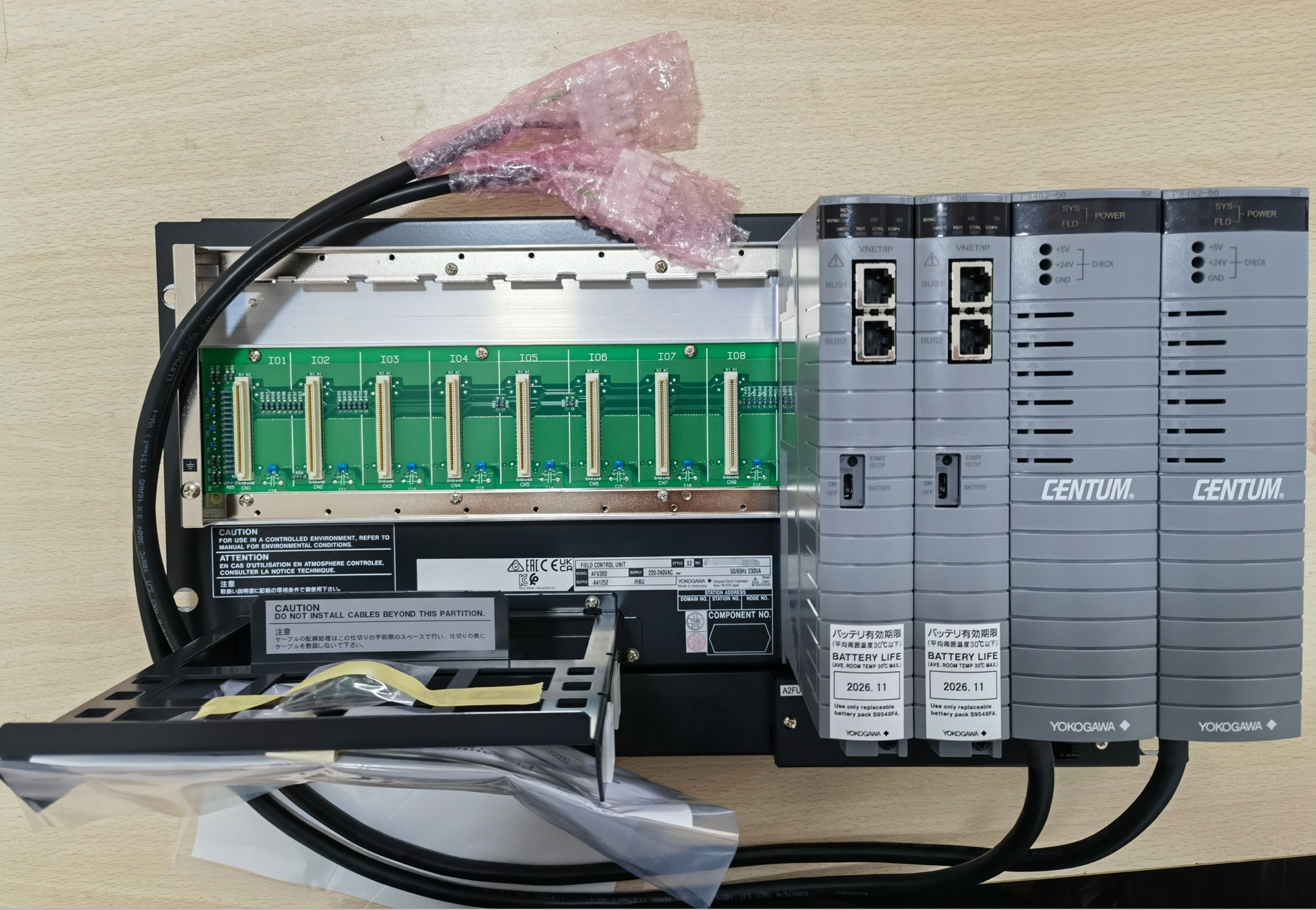

ALE111-S50 Yokogawa Ethernet Communication Module

Name: ALE111-S50 Yokogawa Ethernet Communication Module
Brand: Guangzhou Taike Electron Technology Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Item	Specifications
Physical layer interface	IEEE802.3 10BASE-T
Connection method	Point-to-point
Connector	RJ-45

Manufacturer:

YOKOGAWA

Model:

ALE111-S50

GET A QUOTE

Description

ALE111-S50 Yokogawa Ethernet Communication Module

This document describes about Model ALE111 Ethernet Communication Module (for FIO) that a field control station
(FCS) uses to perform Ethernet communication with subsystems such as FA-M3. This Ethernet communication
module can be mounted on field control units (AFV30, AFV40, AFV10, and AFF50), ESB bus node unit
(ANB10), optical ESB bus node unit (ANB11), and ER bus node unit (ANR10).

HARDWARE SPECIFICATIONS

The Ethernet communication module (ALE111) hardware specifications are as shown below.
Table Ethernet communication module hardware specifications

Item	Specifications
Physical layer interface	IEEE802.3 10BASE-T
Connection method	Point-to-point
Connector	RJ-45
Transmission method	Half-duplex
Transmission speed	10 Mbps
Transmission route	100 ohm twisted-pair cable (not shielded)
Transmission distance	1 segment, 100 m (in between FCS and subsystems, or HUB and subsystems)
Installation method	Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40
No. of ports	One port
Media access control	CSMA/CD
Communication functions	Communications with FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500
Current consumption	0.5 A
Weight	0.3 kg
